Available from stock in capacities 3.25t thru 120t and available up to 1550 the WLS is manufactured from Crosby’s industry leading 2130 Carbon and 2140 Alloy Bolt Type Anchor Shackles (3.25te – 120te) and the GN H10 Alloy Bolt Type Anchor Shackle (120te on up). Straightpoint’s Wireless Loadshackle provides the perfect solution to limited headroom applications. Each Wireless Loadshackle is proof tested, then equipped with a hard anodized aluminium electronics enclosure. Contained within this aluminium enclosure is a new internal chassis providing IP67/NEMA6 environmental protection even with the battery cover plate missing. Featuring industry leading wireless technology and range, the Wireless Loadshackle is supplied with an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilising the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error free transmission of both static weight and dynamic load to a wireless handheld controller or Wireless Windows PC data logging software package. Our Wireless data logging software allows for simultaneous control, display and real time data logging of up to 100 Straightpoint telemetry load cells. Logged data is captured in a .csv file format and opens in MS Excel providing easy visual presentation, analysis of logged data, and simple test certificate generation. Our Wireless Loadshackle utilises easily sourced AA alkaline batteries and features advanced circuitry designed to protect the unit from damage associated with incorrectly installed batteries. This advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement. Our huge range of tooling allows us to calibrate in shackle for extra accuracy unlike many other loadcell manufacturers. A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII serial communications protocol) outputs. Key benefits: Sealed to IP67 / NEMA 4X even with battery cover missing Constructed from Crosby shackle up to 120t, GN Rope for larger capacities up to 1500t Low headroom load measurement solution Supplied with load centering bobbin Industry leading battery life of 1200 hours Uses standard AA batteries No external antenna Remote on / off from handheld display System Range: 800 feet Available in capacities 3.25t to 120t from stock, larger capacities build to order
© All Rights Reserved Leontariou 8 & Karistinou 2 Pallini  +30 210 6034919

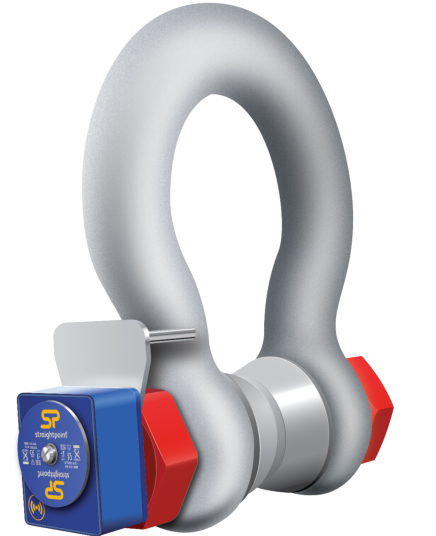

Wireless Loadshackles (WLS)
Wireless Shackle features & benefits: Proprietary 2.4 GHz Wireless Error free data transmission Environmentally sealed Internal antenna Remote on/off Industry leading wireless range Unrivalled resolution Unmatched battery life Low headroom Lightweight Each WLS is supplied with a load-centring bobbin
Home Solutions Projects References Products Contact
Wireless Shackle Manual
Wireless Shackle Specs
